Quam Clean Room Speaker 25/70V SYSTEM 2CR

Be the first to review this product

MODEL: SYSTEM 2CR

Regular Price: $183.82

Special Price: $166.59

Add to Cart

OR

Product Features

Features



  • Average Sensitivity: 94dB SPL, 1W/1M

  • Loudspeaker Power Rating: 20W RMS, EIA 426A Standard

  • Calculated Output: 101dB SPL, 5W/1M

  • Magnet Type & Weight: BeFe Ceramic, 10oz. Nominal

  • Frequency Response: 80Hz - 8kHz, EIA 426A Standard

  • Nominal Coverage Angle: 100° Included Angle, -6dB/2kHz, Half Space

  • Audio Connection: 7", Color-coded, Pre-tinned Leads

  • Dimension: 11 3 ⁄8" (H) x 11 5 ⁄8" (W) x 5 3 ⁄8" (D)

  • Combined Weight: 10 lbs.

  • Loudspeaker Model: 8C10PAOT

  • Transformer: TBLU; 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W)

  • Baffle: BS8WS (available with optional surface printing)

  • Finish: White powder coat finish on baffle and backbox

  • Backbox: SE2WVP, steel

  • Additional Component(s): Rubber gaskets between baffle mount screws and baffle, the baffle and the backbox, and the mounting surface.

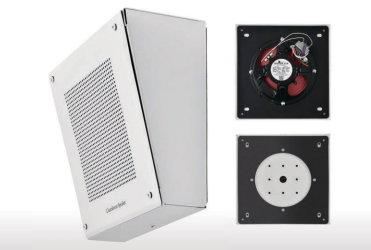

Quam Clean Room Speaker 25/70V SYSTEM 2CR

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Quam Clean Room Speaker 25/70V SYSTEM 2CR

Details

The Quam Clean Room Speaker 25/70V SYSTEM 2CR is your ideal solution for clean room environments, offering a seamless blend of durability and superior performance. Each package features:

  • An 8" moisture-resistant loudspeaker equipped with a powerful 10 oz. magnet for clear, reliable sound.
  • A 5W, 25/70V transformer pre-mounted on a sturdy, square steel baffle for quick and easy installation.
  • Vandal-resistant surface mount enclosure with a slanted design, including four (4) 8-32 threaded inserts for extra security and a single ½" conduit entrance on the back.
  • Rubber gaskets placed between all key components to ensure secure mounting and long-lasting protection.

This system also includes two (2) Wiremold knockouts for added flexibility during installation. Both the baffle and enclosure are finished with a durable white powder coat, offering excellent resistance to scratches and standard cleaning products.

Built for longevity and designed to withstand even the toughest conditions, the SYSTEM 2CR is the ultimate choice for clean room audio installations.
