Quam Clean Room Speaker 25/70V SOLUTION 1CR Qty 2

Be the first to review this product

MODEL: SOLUTION 1CR

Regular Price: $493.92

Special Price: $447.62

Add to Cart

OR

Product Features

Features



  • SOLD In Pairs. Price is for qty 2

  • Average Sensitivity: 94dB SPL, 1W/1M

  • Loudspeaker Power Rating: 20W RMS, EIA 426A Standard

  • Calculated Output: 101dB SPL, 5W/1M

  • Magnet Type & Weight: BeFe Ceramic, 10oz. Nominal

  • Frequency Response: 80Hz - 8kHz, EIA 426A Standard

  • Nominal Coverage Angle: 100° Included Angle, -6dB/2 kHz, Half Space

  • Audio Connection: 7", Color-coded, Pre-tinned Leads

  • Baffle Dimension: 12 7 ⁄8" (Diameter) x 5 ⁄16" (H)

  • Backbox Dimension: 12 5 ⁄16" (Diameter) x 4 ¼" (H)

  • Mounting Support Dimension: 23 ¾" (W) x 14 3 ⁄8" (H) x 9 ⁄16" (D)

  • Combined Weight: 15 lbs

  • Loudspeaker Model: 8C10PAOT

  • Loudspeaker Specs: 8" O.D. loudspeaker, 10oz. magnet

  • Transformer: TBLU; 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5W)

  • Baffle: BR8WS (available with optional surface printing)

  • Finish: White powder coat finish on baffle

  • Backbox: ERD8U, steel

  • Mounting Support: SSB-3, rust-resistant steel

  • Additional Component(s): Rubber gaskets between baffle mount screws and baffle, and between baffle and mounting support

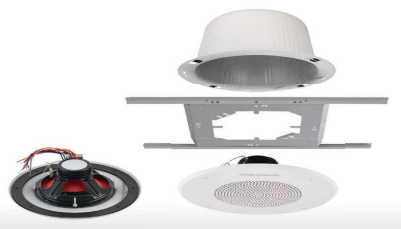

Quam Clean Room Speaker 25/70V SOLUTION 1CR

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Quam Clean Room Speaker 25/70V SOLUTION 1CR

Details

Upgrade your ceiling installations with this all-in-one speaker, transformer, and baffle system, designed specifically for clean room environments. Each easy-to-install package includes:

  • Two 8" moisture-resistant loudspeakers to ensure high-quality sound, even in challenging conditions.
  • A 5W, 25/70V transformer pre-mounted on a round steel baffle for quick, hassle-free setup.
  • Rust-resistant steel supports and backboxes to provide long-lasting durability and stability.
  • Rubber gaskets for extra protection and secure mounting, ensuring a flawless fit every time.

Finished with a sleek, white powder coat that resists scratches and withstands everyday cleaning, this system combines function and style. It's built to last and designed to make your installation process easier and more reliable.
